Infrared (IR) Camera

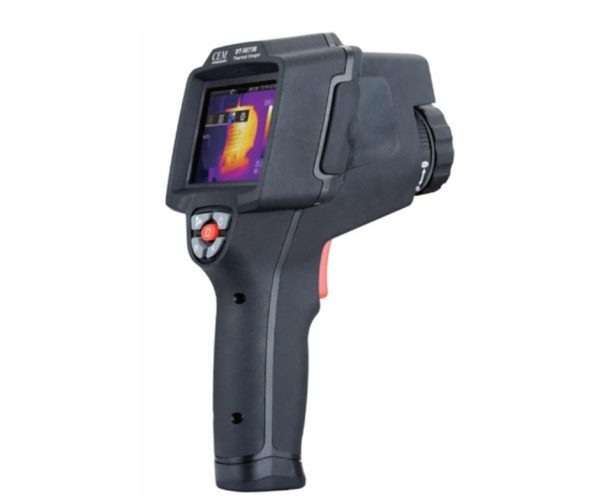

An Infrared (IR) Camera, also known as a thermal imaging camera, is a specialized imaging device that detects infrared radiation (heat) emitted by objects and converts it into a visible image. Unlike traditional cameras that rely on visible light, IR cameras operate in the infrared spectrum, typically from 0.75 µm to 14 µm, allowing them to visualize heat patterns and temperature differences that are invisible to the naked eye.

These cameras are widely used in industrial monitoring, medical diagnostics, surveillance, defense, firefighting, building inspection, automotive systems, and scientific research due to their ability to provide non-contact, real-time thermal imaging.

Working Principle
All objects emit infrared radiation as a function of their temperature, a phenomenon described by Planck’s Law. The IR camera detects this thermal energy using a sensor array (commonly uncooled microbolometers or cooled photon detectors), and translates it into a digital image known as a thermogram.

The thermogram is then color-mapped, with different temperatures represented in various colors (e.g., hot areas in red/yellow and cooler areas in blue/purple), providing a detailed thermal profile of the observed scene.

Key Components
Infrared Lens

Made from materials like germanium or chalcogenide glass to transmit infrared radiation.

IR Detector Array

Converts infrared radiation into electronic signals. Types include:

Uncooled detectors (e.g., microbolometers)

Cooled detectors (e.g., InSb, MCT) for higher sensitivity

Signal Processing Unit

Amplifies and processes the signals to produce thermal images.

Display Screen

Shows the thermal image with temperature mapping.

Calibration and Software Interface

Provides real-time analysis, temperature scaling, threshold settings, and data logging.
