Description

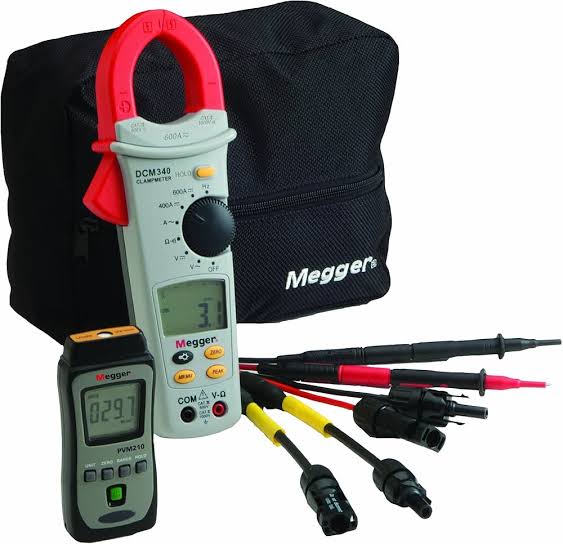

The Megger Photovoltaic Kit is a specialized test equipment kit designed for the installation, commissioning, troubleshooting, and maintenance of solar photovoltaic (PV) systems. Megger, a well-known manufacturer of electrical testing equipment, offers these kits tailored to the needs of solar professionals.
Typical Components in a Megger Photovoltaic Kit
A Megger PV kit generally includes:
Insulation Resistance Tester
For checking insulation integrity of PV cables and arrays.
Usually supports high voltages (up to 1000 V or more).
IV Curve Tracer
Measures the current-voltage (I-V) characteristics of PV modules or strings.
Helps in identifying performance issues like shading, mismatch, or degradation.
Multifunction Installation Tester
Verifies proper earthing, continuity, voltage, and RCDs.
Supports testing per IEC 62446 (international PV installation standards).
DC Clamp Meter
Measures current on live DC circuits without disconnecting wires.
Useful for current imbalance and fault finding.
Solar Irradiance Meter
Measures sunlight intensity (W/m²) on panels.
Critical for accurate I-V curve analysis and performance ratio calculations.
Temperature Sensor or Infrared Thermometer
Measures panel or ambient temperature, which affects PV performance.
Data Logging and Software Tools
For storing test results and generating reports.
Often includes Bluetooth/USB connectivity.
Carrying Case & Accessories
Rugged transport case with probes, leads, and adapters.
