Description
A Schlieren System is an optical technique used to visualize variations in air density that occur due to changes in pressure, temperature, or composition—particularly useful in aerodynamics, gas dynamics, and combustion research.
It allows you to “see the invisible” by capturing refractive index gradients caused by phenomena such as shock waves, boundary layers, thermal plumes, or supersonic jets.
???? What Schlieren Visualizes
-
Shock waves (e.g., from supersonic/hypersonic flows)
-
Thermal convection (e.g., heat rising from a candle)
-
Jet mixing and plumes
-
Boundary layer separation
-
Combustion flame fronts

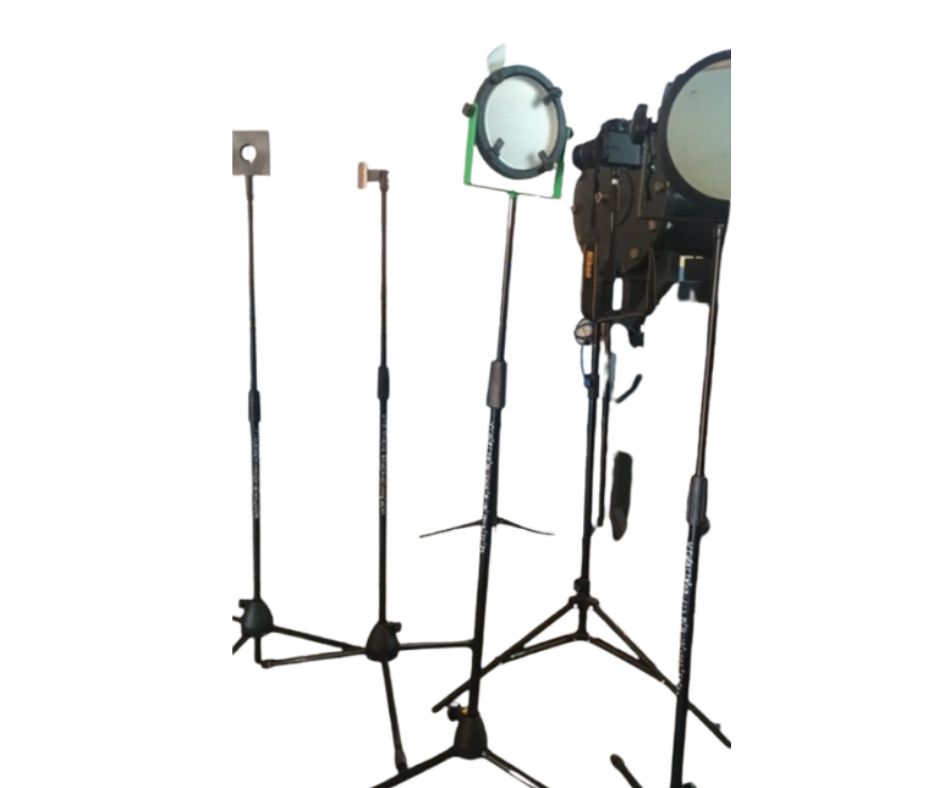

???? Main Components of a Classical Schlieren System
| Component | Description |
|---|---|
| Light Source | A point source of bright, collimated light (e.g., LED, laser, or arc lamp). |
| Collimating Lens or Mirror | Turns diverging light into parallel rays. Mirrors are often used for precision. |
| Test Section | Area where the flow or heat gradient disturbs the refractive index. |
| Focusing Lens or Mirror | Re-focuses the light rays after they pass through the test section. |
| Knife Edge (or Filter) | Placed at the focal point to partially block refracted light; enhances contrast. |
| Camera / Screen | Captures the light pattern, showing visualizations of density gradients. |
???? Types of Schlieren Systems
| Type | Description |
|---|---|
| Z-Type Schlieren | Uses two concave mirrors in a symmetric configuration (common in labs). |
| Single Mirror (Toepler) Schlieren | Uses a single mirror; simpler but requires careful alignment. |
| Color Schlieren | Uses color filters or gratings to provide multi-directional gradient visualization. |
| Background-Oriented Schlieren (BOS) | Modern digital technique using a patterned background and image correlation—more flexible and cost-effective. |
???? How It Works (Simplified)
-
Light rays pass through the test section containing a fluid flow.
-
Variations in density → variations in refractive index → bending of light rays.
-
Bending causes light rays to be blocked or passed by the knife edge
