Description

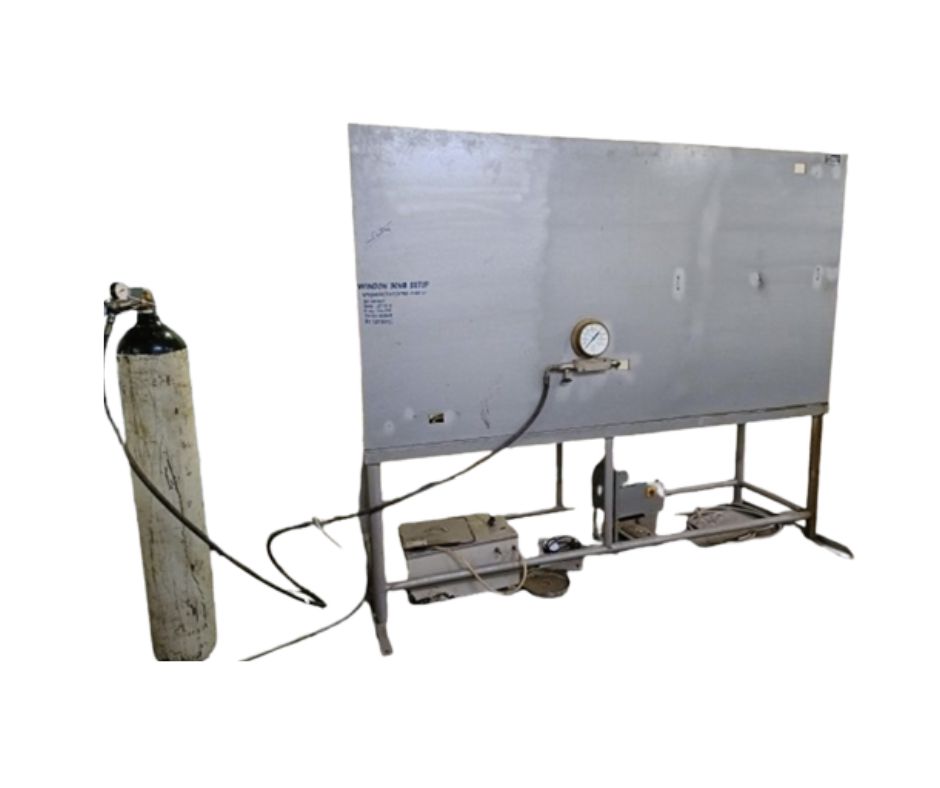

A Window Bomb Setup (also known as a windowed explosion chamber or window blast tube) is a controlled experimental apparatus used to study explosive events, shock wave propagation, or combustion behavior through a transparent section (window) for visual diagnostics.
???? Purpose of a Window Bomb Setup
It allows researchers to observe internal events like:
-
Detonation/deflagration fronts
-
Shock wave formation and propagation
-
Combustion instability
-
Fragmentation or rupture behavior
-
High-speed fluid-structure interaction
These setups are widely used in defense R&D, combustion research, material testing, and shock physics.
???? Key Components
| Component | Description |
|---|---|
| Explosion/Combustion Chamber | A strong, sealed chamber capable of withstanding high internal pressure. Often cylindrical. |
| Window Section | Made of high-strength transparent material (e.g., fused silica, quartz, polycarbonate, or sapphire) for optical access. |
| Initiation System | Typically includes spark plugs, igniters, or detonators. May also use reactive gas mixtures or small explosives. |
| Pressure Transducers | Measure pressure rise, peak overpressure, and decay. |
| High-Speed Imaging | Cameras (Schlieren, shadowgraphy, or direct view) to capture events inside the chamber through the window. |
| Gas Filling and Control Valves | For filling with combustible gas mixtures (e.g., hydrogen–air, acetylene–oxygen). |
| Safety Enclosure | The entire setup is often enclosed within a blast-proof chamber or bunker. |
???? Design Considerations
-
Window Material: Must survive high pressure and temperature without distortion or shattering.
-
Sealing: O-ring or metal seals are critical around the window to prevent leaks.
-
Chamber Strength: Designed using pressure vessel standards (ASME codes, safety factor ~2–4).
-
Optical Diagnostics: Windows must be optically flat and anti-reflective coated if needed.
-
Ignition Timing and DAQ Sync: Precisely timed for high-speed data acquisition.
???? Typical Test Parameters
| Parameter | Typical Range |
|---|---|
| Internal Volume | 0.5 – 20 liters |
| Pressure Rating | Up to 50 bar or higher |
| Window Diameter | 50–150 mm |
| Camera Frame Rate | Up to 1 million fps (depending on shock speed) |
| Gas Mixtures | CH₄-air, H₂-air, C₂H₂-O₂, etc. |
???? Applications
-
Detonation research (DDT, flame acceleration)
-
Shock wave visualization
-
Explosive charge studies (small-scale)
-
Material fracture under high strain
-
Pulse detonation engine development
-
Blast wave simulation and scaling
???? Safety Considerations
-
Strict adherence to safety protocols and remote operation
-
Explosion-proof fixtures, shielding, and remote ignition
-
Real-time pressure relief and emergency venting systems
-
Personal protective equipment (PPE) and safe distance monitoring
Would you like help with:
-
A schematic or CAD layout of a window bomb setup?
-
Material selection for windows?
-
Data acquisition system design?
-
Sample experiments or research papers?
